Since 1993 ProFlo has served the oil and gas industry throughout Western Canada.
Locally owned and operated, ProFlo provides premium testing services to our valued customers.

From simple bleed offs to critical sour workovers, ProFlo is the right testing company for the job.

OUR SEPARATOR PACKAGES
Our separator packages are most commonly used after a sand fracture is completed on a certain pay zone. With some of the sand coming back while flowing, returns will plug or wear on pipelines and facilities. Our sand diffuser will handle 100% sand slugs and will separate the sand from the liquids, transferring clean fluids to storage for easy transportation. This allows the natural gas to burn off to the flarestack or incinerator, storing the sand in the separator for later clean out.

Once the well has cleaned itself up and stops producing sand, we are able to perform a single point test to evaluate what type of well the customer has by the data information that we record and submit to them. Thus allowing them to decide if it is feasible for them to consider more operations like pipelines, more drills, and/or abandonments.

These separator packages are also required for H₂S workovers and completions. A workover is conducted on a well bore if there are certain problems down hole to fix or if the producer decides to switch to different payzones. A completion is attempted once the drilling rig has finished drilling, and a service rig generally moves on to "shoot" the zone and evaluate the results, usually through a separator. The zone gets evaluated to see if it needs any stimulation.

Stimulation is the process of pumping an agent into the payzone to open the perforations shot while completing the well.

When the payzone has a high amount of pressure or H₂S gas, a separator is rigged up to contain any vapors from the gas or the fluid returning to atmosphere. These returns are produced through our separator packages. Thus, containing the fluid and flaring the gas to atmosphere or incineration.

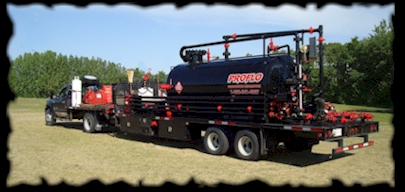

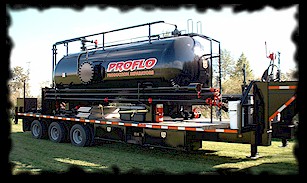

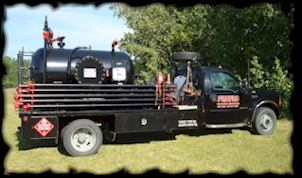

MOBILE SEPARATORS

Gas rates up to 30 million cubic feet/day 720 psi (5000 kPa) Max Working Pressure 16 M3 Fluid Volume Senior Daniels Orifice Changer and Dry Flow Recorder 35 mPa Plug Valve Manifold and ALL Welded Pipe Tandem Injection Pumps for Tubing and Casing Propane and N2 for Purging and/or Instrument Supply Gas

Working Fluid Volume = 11 M3 Working Pressure = 695-1380 KPA Gas Volume = 170-225 E3M3/Day

Working Pressure = 695-1500 KPA Working Fluid Volume = 4-7 M3 Gas Volume = 170-225 E3M3/Day Four Wheel Drive

Working Pressure = 1034 KPA Working Fluid Volume = 2 M3 Gas Volume = 90 E3M3/Day Four Wheel Drive

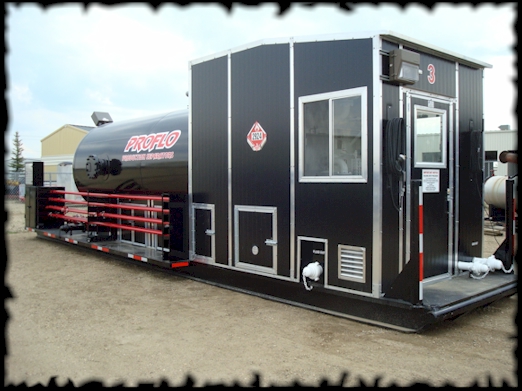

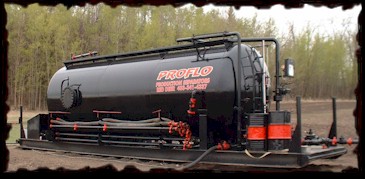

SKIDDED SEPARATORS

Working Pressure = 695-1034 KPA Working Fluid Volume = 15 M3 Gas Volume = 170-200 E3M3/Day 1 Load for Trucking

3 Packages located in Zama/High Level

Working Pressure = 655 KPA Working Fluid Volume = 34 M3 Gas Volume = 145 E3M3/Day 1 Load for Trucking

ALL SEPARATORS COME EQUIPPED WITH:

• DRY FLOW RECORDER AND ORIFICE PLATES
• SENIOR DANIELS ORIFICE CHANGER
• 21 MPA FRAC MANIFOLD
• ALL NECESSARY PIPING

BLOWBACK TANKS

• 15 M³ Portable
• 20 M³ Skidded

C/W 2" line pipe, choke and all fittings

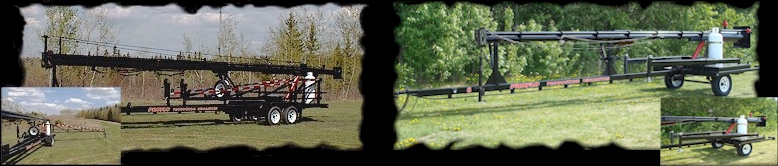

FLARE STACKS

40' to 60' Mobile flarestacks which are towed behind the operators' trucks.

All Freestanding Zero Ground Disturbance Hydraulic Lift

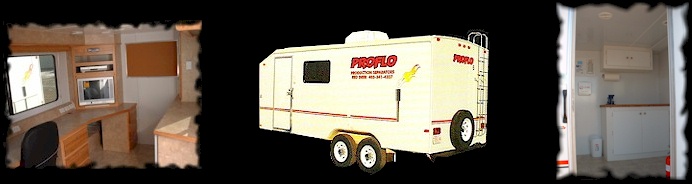

FIELD OFFICES

Air Conditioned, Sample Analyzing Area First Aid Kit, Eyewash Station, Fire Extinguisher 2 - SCBA's Computer Packages c/w Printer and Air Card Generator

SAFETY
We are members of ISNetworld and Canadian HSE Registry.

We have been certified in the "Partnerships in Health and Safety" programs since 1999, and we have signed our name to the Petroleum Industry Guiding Principles.

Along with following the Industry Recommended Practices and Occupational Health and Safety guidelines, we also enforce our own Policies and Procedures to protect our employees.


PERSONNEL
PROFLO PRODUCTION SEPARATORS LTD. ensures that professional, knowledgeable
and competent personnel is what you will receive when our crews arrive.

All of our supervisors are trained in: H2S Alive BC/Alberta First Aid and CPR Confined Space Awareness Gas Detection and LEL Course Fall Protection Audio Metic Baseline WHMIS TDG for Supervisors Petroleum Safety Training (IRP 16) Hazard Awareness

Mandatory pre-hire and random drug testing.

OTHER SERVICES:

Fekete Fieldnotes Blowback Storage Tanks Line Heaters Flow Provers Methane Detectors 35 mPa Welded Flow Lines E.S.D. Valves Surface Recorders Electric Injection Pumps Light Towers
